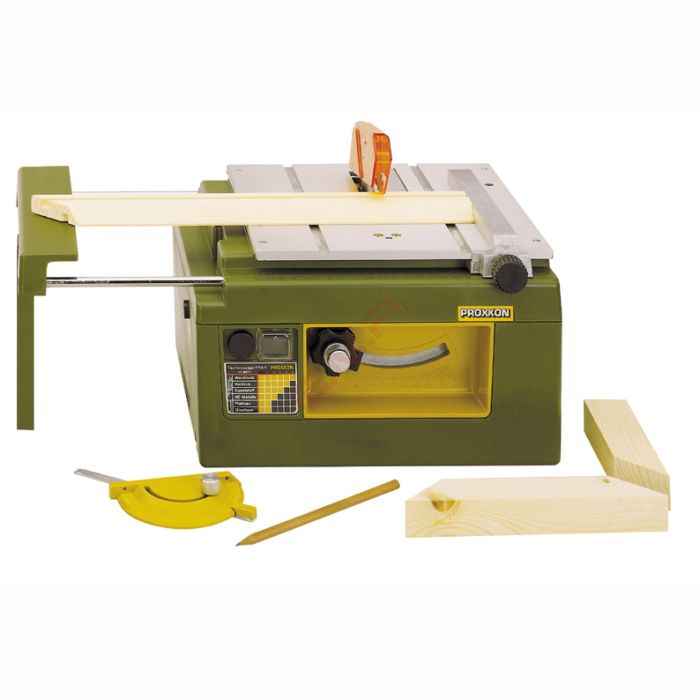

Table Saw FKS/E

The ideal machine for straight, mitre and compound cuts. Usable on all wood types, non-ferrous metals, plastics (ABS, Pertinax, foam rubber) as well as rubber, cork, etc. Even the smallest items may be cut cleanly, obviating subsequent finishing: a table indicates the recommended speeds for various materials. Substantial construction with load bearing parts of die-cast aluminium. Machined aluminium top measures 295 x 240 mm. A mitre slot and fence are provided. An extension wing is housed intregrally and pulled out to increase effective table width to 500 mm. Drive is effected via a special, quiet motor and optibelt. The blade arbor has ball bearings and is fitted with a TCT blade 80 x 1.6 x 10 mm (NO 28 734) as standard. Depth of cut is adjustable from 1 to 22 mm and the blade may be tilted through 45°.
More Information
DimensionsOverall size: 300 x 262 x 170mm (without extension wing)
